What Are Fire Rated Doors And How Do They Protect Buildings

Facilities do not just burn. They fail to contain fire. A passive fire protection strategy relies heavily on fire-rated doors to save lives. They protect property. These robust structures serve as your first line of defense. They mitigate legal liability during catastrophic emergencies. Building owners face immense pressure today. You must meet stringent safety codes like NFPA 80. You also have to balance these rigid life-safety requirements alongside daily operational flow. Budgets remain strict. Modern architectural demands complicate the design process further. It often feels like a constant tug-of-war between aesthetic vision and compliance reality.

This article provides an evidence-based framework for you. We will help you evaluate, specify, and maintain the correct protective assemblies. We explore various material capabilities across commercial, industrial, and residential applications. You will learn how to choose the right components. This ensures long-term safety and strict code adherence.

Key Takeaways

• Fire-rated doors are tested assemblies (door, frame, hardware, and glazing) designed to compartmentalize fire and smoke for a specified duration (20 to 180 minutes).

• Selection depends on building codes, location (e.g., stairwells vs. offices), and environmental conditions.

• Material choices—ranging from high-durability steel to aesthetic wood and glass—dictate both the maximum fire endurance and the total cost of ownership.

• Compliance does not end at installation; strict annual inspection guidelines dictate ongoing maintenance and hardware management.

The Core Function: Redefining the Door as a System

Many professionals mistakenly view a fire door as a single slab of material. Industry experts technically define it as a complete "fire door assembly." You cannot rely on the door leaf alone. The entire system works together to save lives. It functions as a cohesive barrier. If one component fails, the entire barrier fails.

Mechanisms of Protection

Compartmentalization stands as the primary goal. Buildings feature designated fire zones. Assemblies seal these zones off during an emergency. They prevent the spread of radiant heat. They stop active flames from moving down corridors. They also block toxic smoke from entering egress routes. Smoke inhalation causes the most fire-related fatalities. A properly sealed assembly gives occupants precious time. It allows them to evacuate safely. It also provides first responders a protected path to enter the facility.

Anatomy of the Assembly

We must break down the required, tested components. Manufacturers test these parts together as a unified system.

• The Door Leaf and Frame: The core physical barriers. Manufacturers engineer them to withstand extreme temperatures without warping. The frame anchors the system securely into the surrounding wall.

• Intumescent Seals: These hidden heroes remain dormant under normal conditions. They expand rapidly when exposed to extreme heat. This chemical reaction fills the gaps between the door and frame. It effectively blocks smoke and flames.

• Self-Closing Devices: A protective assembly only works when closed. Heavy-duty closers ensure the door shuts automatically after someone passes through. They activate immediately during an alarm.

• Positive Latching Hardware: Fires create massive changes in air pressure. This pressure can easily blow an unlatched door open. Positive latching hardware keeps the door securely shut against these extreme force fluctuations.

Fire Resistance Ratings and Compliance Standards

You must understand endurance ratings to ensure proper compliance. Building codes dictate specific requirements based on occupancy types. They also consider the specific location within a facility.

The Rating Scale

Endurance ratings represent time. They indicate how long the assembly can withstand direct fire exposure. Standard ratings include 20, 45, 60, 90, and 180 minutes. A 20-minute rating often suits residential corridors. A 180-minute rating protects highly volatile industrial zones. These timeframes dictate building egress strategies. They give fire departments a reliable window for rescue operations.

Standard Fire Resistance Ratings and Egress Applications

Industry Standards

Authoritative baseline codes govern these assemblies. The National Fire Protection Association outlines strict operational rules in NFPA 80. This standard dictates installation, inspection, and maintenance protocols. The International Building Code (IBC) governs where builders must place these assemblies. Understanding both frameworks remains essential for facility managers. They ensure your building operates legally and safely.

Testing Criteria

Laboratories subject these assemblies to rigorous testing. This brutal process builds immense trust in the product. It guarantees real-world performance.

1. Temperature Rise Standards: Testers place the assembly in a specialized furnace. They monitor the unexposed side. The surface temperature must not exceed specific limits (often 250°F or 450°F) within a set time frame. This prevents radiant heat from igniting combustible materials on the safe side.

2. The Hose Stream Test: Immediately after the furnace test, technicians blast the glowing hot assembly with a high-pressure fire hose. This simulates the extreme thermal shock and structural impact of firefighting efforts. The assembly must not break apart or fail under this violent pressure.

The Labeling Requirement

Testing agencies like UL (Underwriters Laboratories) or Intertek issue permanent compliance labels. Installers attach these metal or embossed tags to the door edge and the frame. The label contains the manufacturer's details, the time rating, and the positive latching requirement. You must never remove this label. It must remain perfectly legible for annual inspections. A missing label instantly voids the compliance status.

Material Evaluation: Choosing the Right Assembly

You cannot use a one-size-fits-all approach here. Material choices must align with specific business outcomes. You have to evaluate durability, aesthetics, hygiene, and budget constraints.

High-Traffic Commercial and Industrial Use

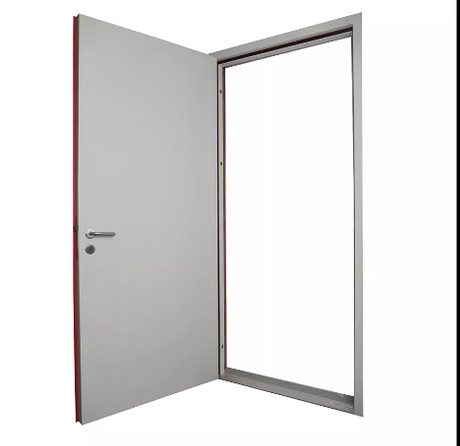

Facilities handling heavy equipment or high foot traffic require immense durability. You should consider Fire Rated Steel Doors for these rigorous environments. They excel in exterior applications and industrial warehouses. Manufacturers build them using heavy-gauge hollow metal. They achieve the highest endurance ratings available on the market, lasting up to 3 hours. They resist dents, vandalism, and extreme weather. They require very little surface maintenance over their lifespan.

Hospitality and High-End Residential Use

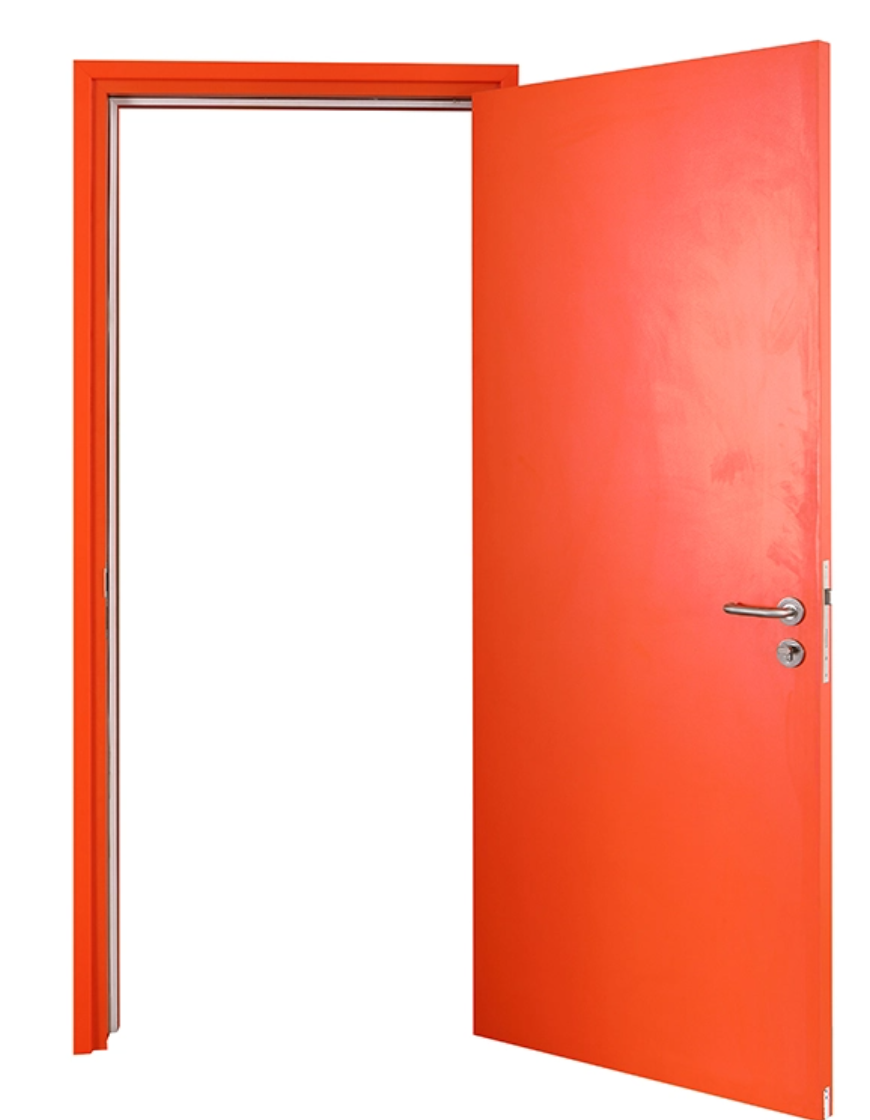

Architects often reject bare metal in luxury spaces. Hospitality venues, high-end corporate offices, and multi-family residential interiors demand warmth. Wooden Fire Rated Doors bridge the gap between strict safety codes and beautiful design. They typically achieve ratings from 20 to 90 minutes. To reach higher ratings, manufacturers integrate specialized mineral cores inside the wood veneer. This inner core blocks heat transfer effectively. You maintain seamless architectural aesthetics without sacrificing occupant safety.

Visibility and Natural Light Requirements

Many modern buildings prioritize open, light-filled spaces. Dark, enclosed stairwells often feel unsafe or uninviting. Corridors and lobbies require high visibility. Fire Rated Glass Doors solve this problem perfectly. They allow natural light to flow while maintaining strict compartmentalization. Manufacturers use specialized clear ceramics or intumescent gel-filled glass panels. You must carefully evaluate impact safety alongside the fire endurance rating. The glass must withstand accidental human impact without shattering into dangerous shards.

Corrosive and Sterile Environments

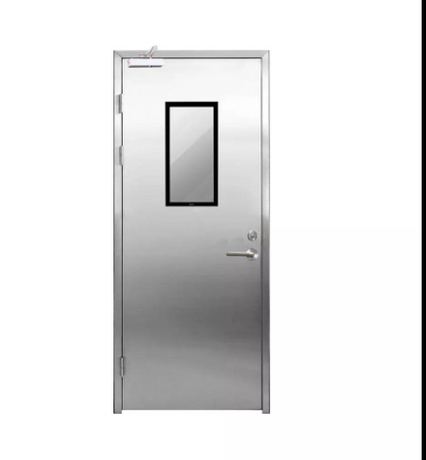

Certain industries face unique environmental challenges. Corrosive manufacturing plants, sterile healthcare facilities, and commercial kitchens face constant chemical exposure. Moisture and rigorous cleaning protocols destroy standard materials quickly. Stainless Steel Fire Rated Doors offer the ultimate solution here. They combine up to 3-hour ratings with exceptionally high sanitation standards. The non-porous surface resists bacterial growth perfectly. It also withstands harsh chemical washdowns without rusting or degrading over time.

Implementation Realities and Location Strategies

Selecting the right material only solves half the problem. Strategic placement and precise installation dictate actual performance during an emergency.

Strategic Placement

Building codes strictly mandate where you must install these protective systems. You will typically find them enclosing stairwells to protect vertical escape routes. They separate distinct occupancy areas, like a warehouse attached to an office space. They isolate high-risk zones such as boiler rooms, electrical closets, and chemical storage areas. They also secure long corridor egresses to prevent smoke from traveling unimpeded across large building footprints.

Installation Risks

Experience shows us that poor installation instantly nullifies the highest factory rating. You must rely on certified professionals. They understand the microscopic tolerances required.

• Clearance Gaps: NFPA 80 strictly measures door-to-frame clearances. The gap between the door edge and the frame usually cannot exceed 1/8 of an inch. The undercut gap at the floor also faces strict limitations (typically 3/4 inch maximum). If these gaps are too wide, smoke and flames will bypass the barrier effortlessly.

• Wall Substrate Compatibility: You must anchor the frame correctly. Drywall installations require different anchoring techniques than masonry framing. The wall itself must carry a rating equal to or greater than the assembly. A three-hour assembly installed in a one-hour drywall partition offers zero added protection.

Hardware Modifications

Facility teams often make dangerous mistakes after installation. We strongly warn against any unauthorized field modifications. You cannot simply drill into these assemblies. All aftermarket hardware must be explicitly rated. This includes kick plates, auxiliary locks, and replacement closers. Adding a standard brass kick plate that extends above 16 inches from the bottom alters the heat transfer dynamics. It immediately voids the manufacturer's warranty and the testing label. Always consult the manufacturer before modifying the surface.

Post-Installation: Inspection, Maintenance, and Risk Mitigation

Your responsibility does not end when the contractor hands over the keys. Ongoing vigilance prevents catastrophic failures. It also protects building owners from severe liability.

The Compliance Burden

Authorities mandate annual inspections for these assemblies. Qualified personnel must conduct these audits. They check dozens of data points on every single assembly. Healthcare facilities and schools face particularly intense scrutiny from the Joint Commission and local fire marshals. Failing these inspections leads to massive fines. It can even result in immediate facility closure until you resolve the safety violations.

Common Failure Points

Facilities frequently fail compliance audits for highly preventable reasons. You should train your staff to recognize these common failure points immediately:

1. Propping Doors Open: Employees often use wooden wedges or heavy boxes to keep doors open for convenience. This bypasses the entire safety system. If an emergency occurs, the barrier cannot deploy.

2. Broken Self-Closing Mechanisms: Heavy usage wears out pneumatic closers. They lose calibration over time. A door that fails to latch completely provides zero protection against pressure changes.

3. Missing Labels or Painted-Over Seals: Maintenance crews often paint over the intumescent seals. Paint hardens the seal and prevents it from expanding during a fire. They also frequently paint over the testing agency labels, making verification impossible.

4. Damaged Edges: Carts and forklifts constantly strike the edges in commercial settings. Compromised edges alter the precise clearance gaps required to block smoke.

Proactive Risk Mitigation

You must budget for proactive maintenance. Reactive code-violation penalties cost far more in the long run. Consistent upkeep prevents sudden expensive overhauls. Assign a dedicated facility manager to conduct monthly visual checks. They can spot a leaking closer or a missing strike plate early. Fixing a minor latch issue today prevents the need to replace the entire frame next year.

Conclusion

Fire-rated doors function as complex life-safety systems. They demand precise specification based on location, traffic flow, and stringent fire codes. You cannot treat them as basic architectural commodities. They require professional installation and rigorous ongoing maintenance to remain effective. Proper material selection ensures you meet both safety mandates and facility design goals seamlessly.

Before moving forward, you should take actionable steps to secure your building. Consult your local Authority Having Jurisdiction (AHJ) immediately. Engage certified fire protection engineers to map out your specific rating requirements. Finalize these critical specifications before requesting vendor quotes or shortlisting manufacturers. Proactive planning guarantees compliance and protects the lives inside your facility.

FAQ

Q: Can you paint a fire-rated door?

A: Yes, you can paint most assemblies to match your interior design. However, you must follow strict rules. You must never paint over the compliance label, the hinges, or the intumescent seals. Painting over the seals prevents them from expanding during extreme heat, which completely destroys the door's ability to block smoke.

Q: What is the difference between fire-rated and smoke-rated doors?

A: A standard assembly resists active flames and radiant heat. A smoke-rated assembly carries an additional "S" label. This means it passed specialized tests for air leakage. It includes extra gasketing designed specifically to prevent toxic smoke drafting, which is critical for protecting breathable air in egress corridors.

Q: Can I retrofit glass into an existing solid fire door?

A: You generally cannot do this on-site. Field cutting usually voids the safety rating entirely. Retrofitting glass requires specialized ceramic glazing and approved framing. Only a certified shop or the original manufacturer can perform this modification to ensure the assembly maintains its structural integrity under heat.

Q: Do fire-rated doors need to be heavy?

A: Yes, they are significantly heavier than standard interior options. The weight varies based on the materials used. Mineral core wood and hollow metal options weigh far more than standard composite materials. They require heavy-duty hinges and reinforced wall frames to support this extra operational weight safely.
