UL Steel Fire Doors: Requirements And Applications

Specifying fire doors demands far more than routine procurement effort. It stands as a critical compliance mandate and a fundamental life-safety requirement in any modern facility. Protecting lives and property hinges on getting these complex decisions exactly right.

Failing local Authority Having Jurisdiction (AHJ) inspections often happens due to incorrect door ratings or mismatched hardware components. These failures expose building owners to severe legal liabilities and expensive project delays. Code violations can halt occupancy permits indefinitely, leaving you scrambling for urgent replacements.

This guide will unpack the essential UL standards governing these vital life-safety products. We will match specific fire ratings to their correct commercial building applications. Finally, you will learn a structured framework for evaluating, specifying, and successfully installing compliant Steel Fire Doors.

Key Takeaways

• Compliance is an Assembly: A UL rated fire door is only compliant when installed as a complete, tested assembly (door, frame, and listed hardware).

• Pressure Testing Matters: Modern building codes typically require UL 10C (positive pressure) testing over older UL 10B (neutral pressure) standards.

• Rating Alignment: Door fire ratings (ranging from 20 to 180 minutes) must strictly align with the fire resistance rating of the surrounding wall.

• Modification Limits: Field modifications are heavily restricted; permanent UL labels must remain visible and unpainted to pass annual NFPA 80 inspections.

Understanding UL Certification and Building Codes

Selecting life-safety equipment requires complete trust in the manufacturing process. You cannot determine a product's fire resistance simply by looking at it. This reality makes third-party testing organizations vital to the construction industry.

Underwriters Laboratories (UL) provides independent, rigorous testing for building materials. When a commercial fire door carries a UL certification, it means the product survived extreme, standardized laboratory conditions. This certification gives architects, inspectors, and facility managers verifiable proof of safety. UL labels act as the definitive passport for code compliance during any AHJ inspection.

UL 10C vs. UL 10B: The Shift in Pressure Testing

Fire testing methodologies have evolved significantly over the past two decades. Historically, the industry relied on the UL 10B standard. UL 10B uses a neutral pressure testing environment. However, researchers realized neutral pressure does not accurately reflect real-world fire dynamics.

Real fires generate intense positive pressure. Heat expands gases rapidly, pushing smoke and flames forcefully against building barriers. The UL 10C standard specifically tests for this positive pressure. It forces flames outward toward the edges of the opening, simulating the aggressive push of a genuine structural fire. Because UL 10C closely mimics actual fire behavior, most modern commercial building codes—including the International Building Code (IBC)—now mandate UL 10C compliance for new installations.

SDI-118 & NFPA 80 Standards

Physical testing represents only one half of the compliance equation. Proper field implementation governs the other half. The Steel Door Institute publishes SDI-118, a foundational guideline outlining basic testing parameters and manufacturing expectations for hollow metal components.

Meanwhile, the National Fire Protection Association dictates field execution through NFPA 80. NFPA 80 serves as the ultimate rulebook for installation, maintenance, and ongoing testing. It outlines the specific tolerances allowed during installation. Furthermore, NFPA 80 establishes the strict criteria used by inspectors during mandatory annual fire door reviews. Ignoring NFPA 80 guidelines renders even the most robust UL-certified product entirely non-compliant.

Rating Requirements: Specifying the Right Time Grade

Engineers and architects design buildings into separate compartments. These compartments contain fires within a specific zone, preventing widespread structural collapse. Wall structures receive specific fire resistance ratings based on their construction materials.

You might assume an opening requires the exact same rating as the wall surrounding it. However, the industry uses a standard known as the "Wall-to-Door" rule. Under this rule, door ratings typically equal three-quarters (3/4) of the rating of the surrounding wall.

Why do we use the three-quarter rule? Combustible materials rarely pile up directly against an active doorway. Walls bear the brunt of stationary fire loads (like burning furniture or equipment). Openings historically face less direct, sustained fuel exposure. Therefore, a 2-hour rated wall mathematically requires a 90-minute (1.5-hour) opening assembly to maintain overall zone integrity.

Fire Door Rating Alignment Guide

Common Fire Ratings

Matching the correct time grade to the physical location ensures occupant safety while preventing costly over-specification.

20-Minute Ratings

Designers predominantly use 20-minute ratings for 1-hour corridor walls. They frequently appear in smoke barriers and interior partitions separating general office spaces. These units provide enough time for occupants to evacuate a standard commercial floor plan before smoke and heat compromise the hallway.

45-Minute Ratings

You will typically install 45-minute options in 1-hour exterior walls. Building codes require them when an exterior wall sits closely to an adjacent property line, preventing fire from jumping between buildings. They also serve as heavy-duty room partitions in mixed-use facilities.

90-Minute Ratings

The 90-minute classification stands as the standard for 2-hour enclosures. You find these exclusively protecting critical vertical exit pathways. Stairwells and elevator shafts rely on 90-minute barriers to prevent fire from traveling floor-to-floor, acting as a chimney.

3-Hour (180-Minute) Ratings

The maximum standard time grade is the 3-hour rating. Builders reserve these specifically for 4-hour walls dividing massive structures into separate buildings. They also enclose high-hazard areas, such as chemical storage rooms or heavy manufacturing zones, where a fire could burn intensely for hours.

Core Assembly Components and Glazing Constraints

One of the most dangerous misconceptions in construction is viewing a slab of steel as a complete solution. Specifying reliable UL steel fire doors means evaluating an entire, unified system. The industry calls this the "Labeled Assembly" concept.

A labeled assembly includes the frame, the slab, the hinges, the lockset, and the closing device. All these elements must work together perfectly. If you install a highly rated slab using unrated, standard commercial hinges, the entire assembly becomes instantly non-compliant. The intense heat will melt standard hinges, causing the heavy slab to fall out of the frame.

Essential Hardware

Active life-safety systems require autonomous operation. During an emergency, occupants will not stop to gently close and latch the exit path behind them. Therefore, specific hardware components are strictly mandatory.

First, you must install UL-listed self-closing devices. You can achieve this using heavy-duty hydraulic closers or specialized spring hinges. The unit must close itself completely from a fully open position without human intervention.

Second, positive latching mechanisms are legally required. When the unit swings shut, it must click and lock firmly into the strike plate. Positive pressure from a fire can easily blow an unlatched door wide open, instantly destroying the compartment's integrity. Deadbolts alone do not qualify; the latch must engage automatically upon closing.

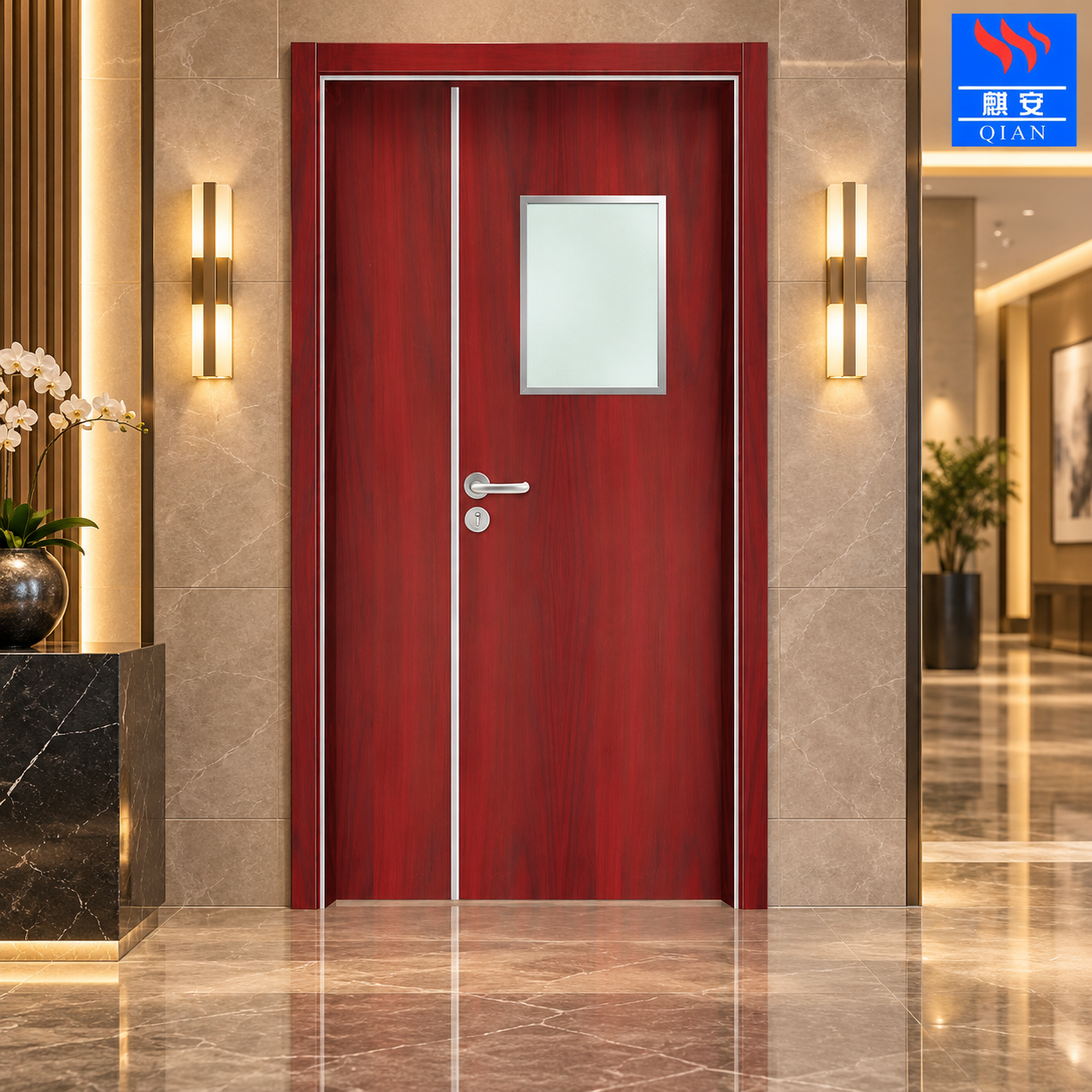

Glazing (Vision Lites)

Architects often want to incorporate glass into openings for visibility and natural light. However, glass presents a major vulnerability in fire containment. Building codes heavily restrict glazing (commonly called vision lites) based on the overall time grade.

• 3-Hour Restrictions: Because of the extreme heat over 180 minutes, 3-hour rated assemblies typically cannot feature any windows. The structural integrity required simply does not allow for glass panels.

• 90-Minute Limits: For 90-minute enclosures, codes restrict glass to a maximum of 100 square inches per leaf. You must use specialized fire-rated glass and highly engineered, UL-labeled lite kits to hold the glass in place.

• 20 to 45-Minute Allowances: Lower rating categories allow for much larger glass areas. However, you must still specify tested, rated glass products that perfectly match the time grade of the surrounding slab.

Strategic Commercial Applications

Understanding technical specifications is only helpful when you apply them correctly to real-world environments. Different commercial zones present unique hazards and egress challenges.

Stairwell Egress

Vertical exit enclosures serve as the primary lifeline during a high-rise evacuation. A steel fire exit door in a stairwell faces a unique physical challenge. It must stop flames, but it must also stop radiant heat.

If a fire rages in a hallway at 1,500 degrees Fahrenheit, the metal facing the stairwell will heat up rapidly. If it gets too hot, occupants walking past it could suffer severe radiant heat burns. Therefore, stairwell applications often require "Temperature Rise" criteria. These specialized units contain specialized core materials designed to minimize heat transfer. They ensure the non-fire side remains cool enough for occupants to pass safely during their descent.

Industrial and High-Hazard Zones

Manufacturing floors, server rooms, and chemical storage facilities demand maximum protection. These high-hazard zones feature massive fuel loads. A spark in a chemical room can escalate into an inferno in seconds.

Evaluation criteria for these areas focus heavily on structural durability alongside the standard 3-hour fire rating. Standard 18-gauge steel often proves too weak for industrial traffic. Forklifts, heavy carts, and continuous shifts abuse these entryways daily. For these environments, specify heavy-duty 16-gauge or extra-heavy 14-gauge steel. The thicker gauge steel withstands mechanical impacts, ensuring the frame and slab remain perfectly aligned and ready to perform during a crisis.

Corridors and Patient Rooms

Hospitals, nursing homes, and primary schools operate under specialized life-safety strategies. In a hospital, you cannot easily evacuate bedridden patients down a flight of stairs. Instead, these facilities rely on a "defend-in-place" strategy.

In these applications, smoke control is just as critical as flame resistance. Most fire-related fatalities result from smoke inhalation, not direct burns. Corridor applications frequently require an "S" label. The "S" signifies compliance with strict smoke and draft control standards. These assemblies utilize specialized gasketing and intumescent seals that expand when heated, completely blocking toxic smoke from entering patient rooms.

Implementation Risks and Inspection Failures

Procuring the perfect product solves only half the puzzle. Improper installation and poor facility maintenance ruin thousands of compliant assemblies every year. NFPA 80 mandates annual inspections, and AHJ officials look for specific, recurring errors.

Label Integrity

The most common reason for a failed inspection is shockingly simple: compromised labels. The physical UL label permanently attached to the hinge stile or frame is a legal document. It provides the inspector with the manufacturer's details, the time grade, and the certification file number.

Facility maintenance teams frequently paint directly over these labels during routine hallway renovations. Sometimes, aggressive cleaning chemicals erase the ink. Occasionally, contractors peel them off entirely. If an AHJ inspector cannot read the label, the opening fails the inspection immediately. The label must remain visible, legible, and unpainted at all times.

Clearance Tolerances

Fire assemblies require exact geometric precision to function. NFPA and SDI rules dictate incredibly strict clearance tolerances. Clearances refer to the gaps between the slab and the frame, as well as the undercut gap between the slab and the finished floor.

If the undercut gap exceeds allowable limits, massive volumes of oxygen will feed the fire, and smoke will easily escape into safe zones. Contractors often install flooring incorrectly, leaving excessive undercut gaps. When inspectors measure these gaps and find they exceed the maximum permitted allowance, they will red-tag the assembly. Fixing this usually requires expensive, custom-engineered sweeps or complete frame re-installations.

1. Verify Floor Heights: Always confirm final finished floor elevations before ordering frames to ensure undercut tolerances remain compliant.

2. Measure Perimeter Gaps: Keep side and top clearances strictly within NFPA 80 limits (typically 1/8 inch for steel assemblies).

3. Check Hinge Bind: Ensure heavy slabs do not sag over time, which alters the top clearance gap and causes latching failures.

Unauthorized Field Modifications

Construction sites are unpredictable. Sometimes hardware does not fit, or access control vendors need to run wiring. A common reaction is to grab a drill and modify the frame or slab on-site.

You must actively warn construction teams against this. Drilling unapproved holes, cutting larger vision lites, or swapping out factory hardware without official AHJ approval immediately voids the UL rating. Once you compromise the factory-tested design, the unit loses its certification. Any necessary field modifications must fall strictly within NFPA 80 allowances, which generally only permit minor preparations for surface-applied hardware.

Procurement Advice

To mitigate installation risks, adopt a streamlined procurement strategy. Always recommend sourcing materials pre-prepped directly from the factory. Modern manufacturers possess the precise engineering capabilities to cut hardware templates and vision lite openings before the product ever hits the shipping dock.

Factory-prepped components eliminate the need for dangerous on-site fabrication. They guarantee the hinges, closers, and locksets align perfectly with the reinforced steel backing plates inside the door. This approach drastically reduces labor time, prevents accidental certification voiding, and ensures a seamless sign-off from the fire marshal.

Conclusion

Specifying the right fire barrier bridges the critical gap between strict code compliance, long-term facility durability, and ultimate occupant safety. Moving away from guesswork and leaning on established UL testing parameters guarantees your building performs exactly as engineered during an emergency.

Before requesting any manufacturing quotes, decision-makers must actively audit their architectural plans. You must verify the distinct fire resistance rating of every single wall where an opening occurs. Failing to map these ratings beforehand guarantees costly change orders and delayed occupancy permits.

Do not navigate these complex building codes alone. Promptly consult with a certified commercial supplier or a dedicated manufacturer early in the design phase. Their technical expertise will ensure accurate specifications, seamless hardware compatibility, and a frictionless AHJ approval process.

FAQ

Q: Are all hollow metal doors fire-rated?

A: No. While steel is naturally non-combustible, a door is only fire-rated if it has undergone specific UL testing, contains the correct core material, and bears a certified physical label.

Q: Can I retrofit a standard steel door to make it a UL rated fire door?

A: No. Fire ratings are achieved at the point of manufacture through tested designs. You cannot apply a rating or label to an existing, untested door in the field.

Q: What is the difference between a fire rating and a temperature rise rating?

A: A fire rating dictates how long a door withstands fire penetration. A temperature rise rating dictates how well the door prevents the transfer of radiant heat to the non-fire side, which is critical for stairwells.

Q: How often do commercial fire doors need to be inspected?

A: Per NFPA 80, fire-rated doors must undergo a visual inspection and functional drop-test at least once annually by a qualified individual.
