How Long Do Fire Rated Doors Resist Fire?

Facility managers and contractors cannot afford to guess when it comes to life safety and building compliance. Failing to specify the correct fire resistance duration inevitably leads to failed inspections, legal liability, and catastrophic risk. While the exact duration a door resists fire is dictated by its rating—ranging from 20 minutes up to 3 hours—actual performance during a real-world emergency depends on multiple factors. It relies heavily on proper material selection, correct glazing, and fully certified hardware.

This comprehensive guide breaks down standard fire ratings and explains how different materials achieve these critical benchmarks. We detail the evaluation criteria necessary to specify the right assembly for your operational needs. You will discover how to match durations to building codes, avoid premature installation failures, and procure robust safety solutions. Making informed decisions here protects building occupants and ensures strict regulatory compliance across your facility.

Key Takeaways

• Standardized Time Intervals: Fire doors are rigorously tested and labeled for specific intervals—most commonly 20, 45, 60, 90, and 180 minutes—based on NFPA and UL testing standards.

• Wall vs. Door Ratings: Building codes generally require the door assembly to have a rating equal to 3/4 of the fire wall's rating (e.g., a 2-hour wall requires a 90-minute door).

• Material Limitations: Not all materials can reach maximum ratings. Wood is typically capped at 90 minutes, while steel can achieve up to 3 hours.

• Assembly is Everything: A fire door's time rating is instantly invalidated if paired with non-compliant hardware, damaged seals, or improper installation.

The Standard Time Ratings for Fire Rated Doors

Industry ratings do not represent arbitrary estimates. They serve as highly regulated benchmarks. Testing facilities evaluate commercial doors under extreme, standardized conditions. Regulatory bodies rely on stringent test protocols like ASTM E152, UL 10B (neutral pressure), and UL 10C (positive pressure) to determine exactly how long an assembly can withstand active flames.

During these evaluations, laboratories subject the entire assembly to a controlled furnace test. Following the heat exposure, many assemblies also undergo a rigorous hose stream test. This involves blasting the red-hot door using a high-pressure fire hose. The rapid cooling and intense physical impact verify structural integrity. If the door warps excessively or allows flames to breach, it fails the test entirely.

The Time Matrix

Commercial building codes segment fire doors into specific time intervals. You must select the right interval based on the door's exact location and purpose. The most common standard ratings include:

• 20-Minute: Architects frequently use these in corridors. Smoke and draft control remain the primary concerns here. They provide enough time for occupants to evacuate a standard hallway.

• 45-Minute & 60-Minute: Code enforcers typically require these intervals for room partitions. They effectively divide distinct occupancy areas. You often see them separating office spaces from adjoining warehouse floors.

• 90-Minute: This represents the commercial industry standard for critical infrastructure. You will specify 90-minute assemblies for stairwells, elevator shafts, and primary egress routes cutting through 2-hour rated walls.

• 180-Minute (3-Hour): Fire marshals reserve this maximum rating for high-risk boundaries. They enclose severe hazard areas or serve as primary fire walls separating two entirely different buildings.

The Heat Curve Reality

Understanding the time rating requires looking at the testing heat curve. A "90-minute rating" means the door survived a controlled furnace environment reaching over 1,700°F (926°C) for exactly 90 minutes. It did not buckle, melt, or allow flames to pass through. This intense thermal endurance guarantees critical evacuation time during a severe structural fire.

Material Evaluation: Time Ratings by Door Type

Different environments demand different materials. Facility managers must evaluate materials objectively based on maximum potential ratings, structural integrity, and ideal use cases. This evaluation process aids in making safe, compliant specification decisions.

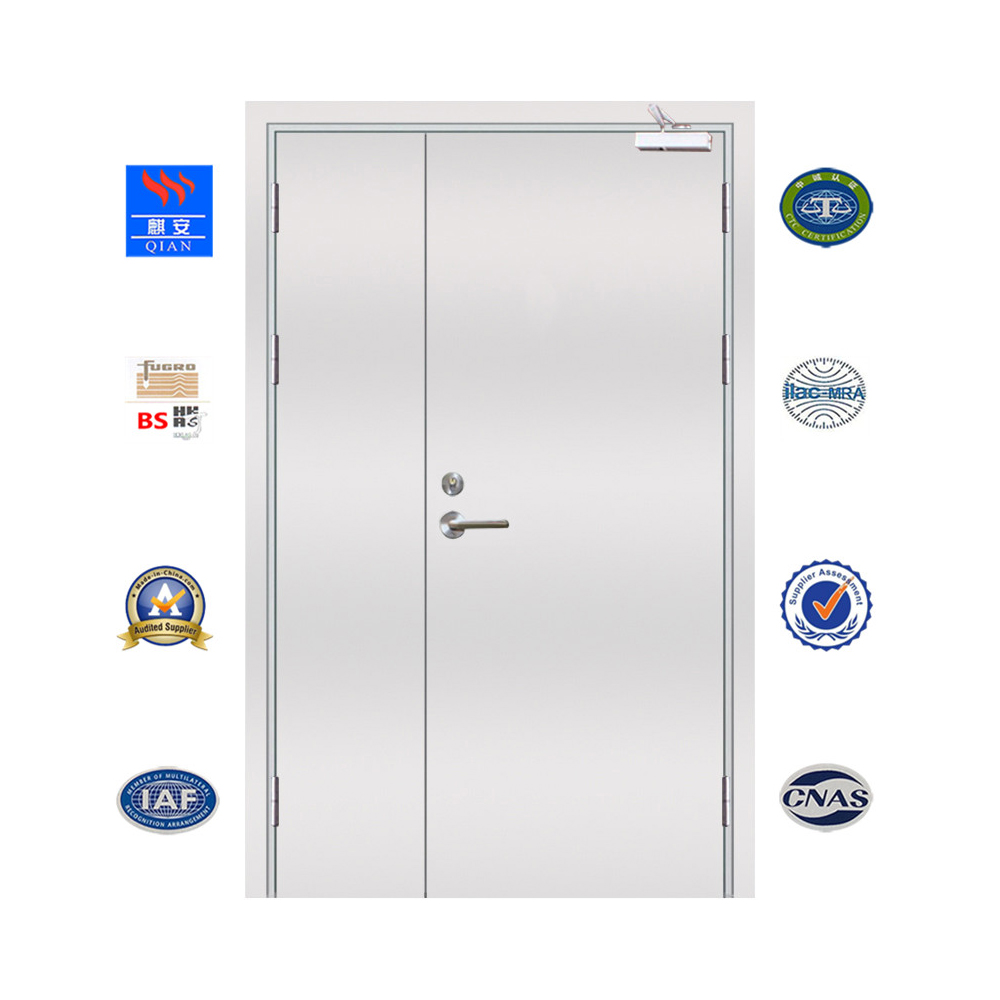

Fire Rated Steel Doors & Stainless Steel Fire Rated Doors

Rating Capacity: Up to 180 minutes (3 hours).

Evaluation Criteria: Metal assemblies offer the highest possible fire resistance and baseline security. Standard Fire Rated Steel Doors remain highly cost-effective for industrial use, manufacturing plants, and heavy-duty stairwells. They feature internal reinforcements and fire-resistant cores.

For specialized environments, Stainless Steel Fire Rated Doors provide critical corrosion resistance. You specify stainless steel for hygienic facilities like hospitals, pharmaceutical labs, or food processing plants. They also perform exceptionally well in harsh external environments exposed to salt or severe weather. The core strength of steel ensures maximum survival time under direct flame contact.

Wooden Fire Rated Doors

Rating Capacity: Typically 20 to 90 minutes.

Evaluation Criteria: Wood provides a warmer, professional aesthetic. It works best for interior, client-facing environments. Hotels, corporate offices, and educational facilities often utilize Wooden Fire Rated Doors because aesthetic integration matters just as much as compliance.

These doors achieve their ratings through specialized internal mineral cores. Manufacturers also embed intumescent edge seals into the door frame. These hidden seals react to high temperatures instantly. They expand to fill any gaps between the door and the frame, sealing off lethal smoke and flames.

Fire Rated Glass Doors & Glazing

Rating Capacity: 20 to 120+ minutes (depending on framing and glass type).

Evaluation Criteria: Visibility often enhances safety. Fire Rated Glass Doors allow light transmission and let first responders assess dangerous areas before entering.

Inspectors evaluate glass systems based on two categories: "fire-protective" and "fire-resistive". Fire-protective glazing successfully blocks smoke and flames but allows radiant heat to pass through. Fire-resistive glazing blocks flames, smoke, and dangerous radiant heat. Manufacturers achieve these ratings using specialized intumescent gels sandwiched between multi-laminate glass layers. They remain ideal for high-traffic areas requiring visibility without compromising egress safety.

Fire Door Material Specification Chart

Matching the Duration to Building Code Requirements

Specifying the right time duration requires a clear understanding of building codes. You cannot guess the required rating based on visual preference alone.

The "Three-Quarters" Rule

The International Building Code (IBC) and NFPA 101 dictate standard commercial logic. They generally apply the "three-quarters" rule. This code requires the door assembly to hold a rating equal to three-quarters of the surrounding fire wall's rating. Since occupants pass through doors quickly, the door itself does not always need to match the wall's full duration.

Application Matrix

You can follow this standard application matrix when reviewing architectural blueprints:

1. 1-Hour Fire Wall: Requires a 45-Minute Door. Commonly found dividing standard office partitions.

2. 2-Hour Fire Wall: Requires a 90-Minute Door. This serves as the strict standard for stairwell enclosures and vertical elevator shafts.

3. 4-Hour Fire Wall: Requires a 180-Minute Door. Installers often limit these applications to specific structural steel frames dividing massive industrial facilities.

Over-Specification Risks

Many contractors fall into the trap of assuming "higher is always better." This misconception leads to over-specification. Specifying a 180-minute assembly for a 20-minute corridor increases project costs significantly. It also drastically limits your aesthetic options. Heavy 3-hour steel doors prevent the use of warm wood veneers or large glass vision lites. You gain zero added legal benefit while sacrificing design flexibility and project budget.

Implementation Realities: Why Rated Doors Fail Prematurely

Even the highest-rated door provides zero protection if installed incorrectly. Real-world installation errors and maintenance shortcuts routinely invalidate fire ratings. You must understand how assemblies fail to ensure your facility remains compliant.

Non-Compliant Hardware

The door slab represents only one part of the system. A 90-minute door fitted with standard, non-fire-rated hinges will fail in minutes. Heat melts standard metals rapidly. If an uncertified door closer fails, the door swings open during a fire. You instantly void the entire assembly's rating by pairing certified slabs with uncertified hardware.

Compromised Intumescent Seals

Modern doors rely on intumescent strips. These chemical seals expand up to tenfold under extreme heat to block smoke and flames. Unfortunately, careless maintenance crews frequently paint over them. Paint hardens the seal and prevents expansion. Missing, damaged, or painted-over seals drastically reduce the exact time the door can resist fire.

Field Modifications

Never authorize unauthorized on-site drilling or cutting. Adding unapproved kickplates, changing window lites, or shaving down the door edge compromises structural integrity. Only certified machining facilities hold the authority to alter a fire door. Any unapproved field modification immediately voids the UL or Warnock Hersey (WHI) label.

Propping and Clearances

A heavy 3-hour door offers zero minutes of protection if an employee wedges it open. Propping doors open with wooden stops remains a severe life safety violation. If you require a door to stay open for high traffic, you must install compliant automatic magnetic release systems. These magnetic systems tie directly into the building's fire alarm. They automatically release and close the door the moment smoke triggers the alarm.

Common Mistakes to Avoid:

• Using standard screws instead of the manufacturer-provided steel fasteners.

• Failing to check the maximum allowable undercut clearance (typically 3/4 inch maximum from the floor).

• Installing non-rated glass into a rated door slab.

How to Specify and Procure the Right Fire Door Assembly

Procuring certified components requires careful vendor evaluation. You need full assemblies guaranteed to pass strict local fire marshal inspections.

Verification

Always ensure the manufacturer provides physical, factory-applied certification labels. You will find these metal tags or embossed labels from agencies like UL or Warnock Hersey fastened to the door edge and the hinge side of the frame. Facility teams must never remove, cover, or paint over these labels. Inspectors look for these labels first; without them, the door legally holds no fire rating.

Vendor Capabilities

Evaluate your suppliers based on their comprehensive manufacturing capabilities. Work with vendors who provide fully pre-hung, pre-machined assemblies. Buying the door, frame, hinges, and closers as a single integrated package guarantees systemic compliance. It eliminates the risk of field installers mixing incompatible parts.

Lead Times vs. Customization

Balance your construction project timelines against your material choices. Standard industrial 90-minute steel doors frequently qualify as quick-ship items. Conversely, custom-veneered wooden doors or complex fire-resistive glass systems require extended manufacturing lead times. Plan your procurement schedule carefully to avoid stalling the entire building project.

Conclusion

The duration a fire door resists active fire represents a highly engineered, rigorously tested metric. Ranging from 20 to 180 minutes, these time benchmarks save lives. However, these ratings only hold true if you specify the door correctly, match it to local building codes, and install it flawlessly.

Next Steps for Facility Managers and Contractors:

1. Audit Your Blueprints: Review your architectural plans to ensure every door rating matches the 3/4 rule for its surrounding wall.

2. Select the Right Material: Choose standard steel, stainless steel, wood, or glass based on the environmental demands and aesthetic needs of the specific space.

3. Verify Assembly Hardware: Confirm all hinges, closers, and seals hold individual certifications matching the door's time rating.

4. Schedule Annual Inspections: Follow NFPA 80 guidelines and conduct strict yearly audits of your door assemblies.

Do not leave your facility's safety to chance. Consult with code compliance officers or work directly with certified commercial door distributors to procure compliant assemblies. Request a project quote today or speak directly with a fire door specification team to secure your building.

FAQ

Q: Does a 90-minute fire door last forever?

A: You must distinguish between "fire resistance time" and "product lifespan." While it resists active fire for exactly 90 minutes under testing conditions, the door's physical lifespan can last decades if properly maintained. However, physical damage, severe rust, or failure to pass annual NFPA 80 inspections will require immediate early replacement to maintain compliance.

Q: Can you put glass in a 90-minute fire door?

A: Yes, but building codes strictly regulate it. You must use specific fire-rated glazing. Installers often limit this glazing to a maximum of 100 square inches in a 90-minute assembly. You must also install the glass using certified steel vision frames and approved glazing tape to maintain the overall rating.

Q: Are frames rated differently than the doors?

A: Inspectors evaluate the door slab, the frame, and the hardware together as a complete "assembly." If an installer hangs a 90-minute door slab inside a 45-minute rated steel frame, the maximum legal rating of the entire opening defaults to the lowest rated component. In this scenario, it becomes a 45-minute assembly.
