Nigeria Hospital Project: Complete Healthcare Door System Solution Delivered by Qi'an Door
| Project Name | Nigeria Hospital Project |
| Country | Nigeria |
| Year | 2024 |
| Project Type | Healthcare Facility / Hospital Construction Project |
| Solution Provided | Complete Healthcare Door System Solution |
| Supplier | Guangdong Qi'an Door Industry Co., Ltd. |
| Products Supplied | UL Fire Doors, Radiation Protection Doors, Acoustic Doors, Wooden Doors, Floor Spring Doors |
| Standards | UL 10C |

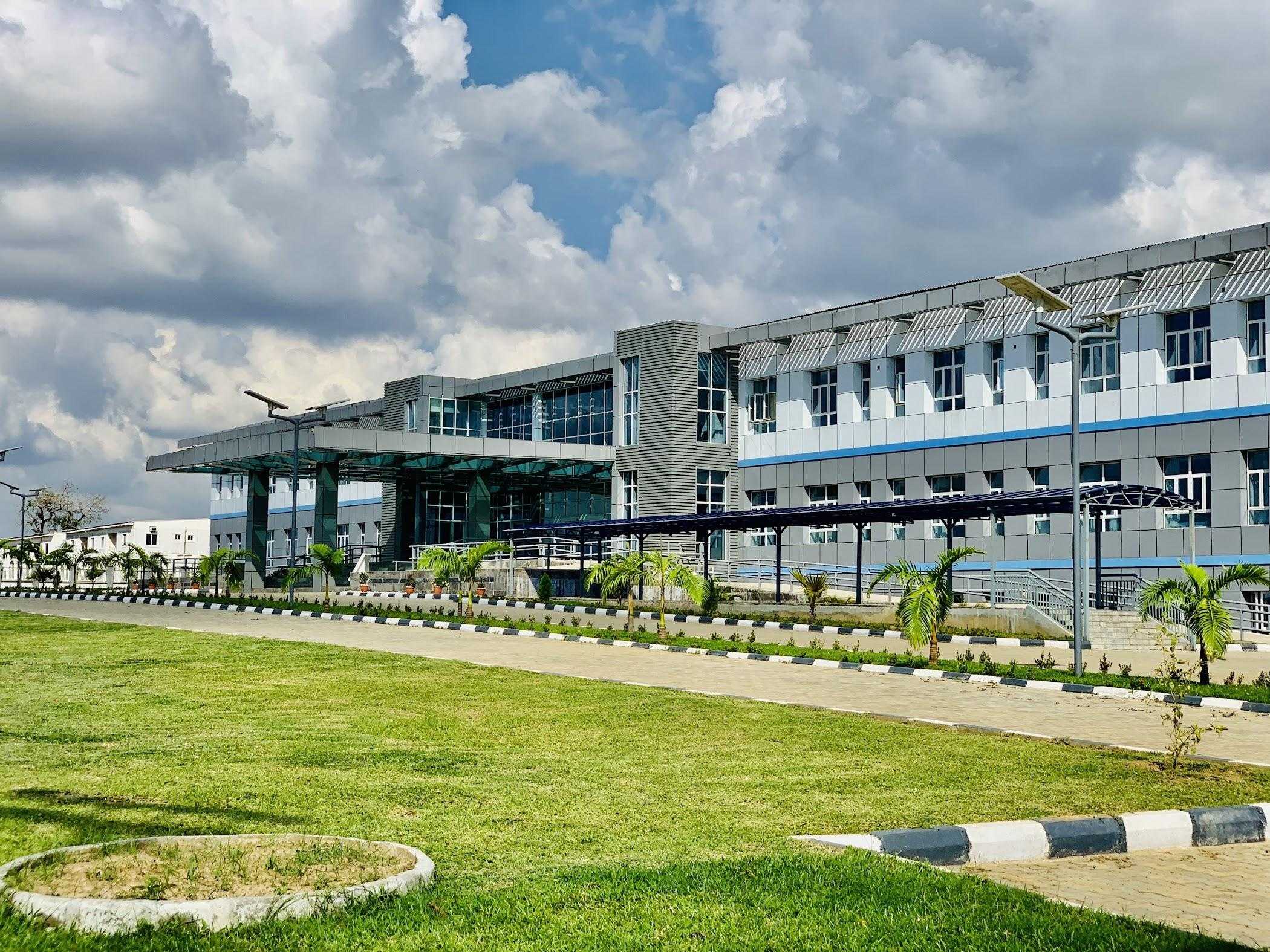

Healthcare Project Background
Modern healthcare facilities place higher demands on door systems than most other building types. A hospital door is rarely just a means of passage — it is part of the building's overall safety and functional system, and different zones within the same hospital require entirely different door performance.
We approach hospital projects with this understanding: door systems in a healthcare building need to address fire compartmentation, so that fire and smoke are contained within defined zones during an emergency; radiation protection, for departments using imaging or radiological equipment where shielding is a life-safety and staff-safety requirement; acoustic privacy, for consultation rooms, ICUs, and functional areas where patient confidentiality and a controlled sound environment matter; and daily operational reliability, since hospital doors are used continuously, around the clock, and must perform consistently under heavy daily traffic.
We do not have site details to share for this project — including the hospital name, address, developer, facility scale, or building area — as this information falls outside our supply role. What we can speak to directly is the door system scope we supplied and the engineering process behind it, which we outline below.
| Area | Requirement |
| Fire Zone | UL Fire Door |
| X-Ray Room | Radiation Door |
| Consultation Room | Acoustic Door |
| ICU / Functional Room | Acoustic Fire Door |
| Interior Area | Wooden Door |

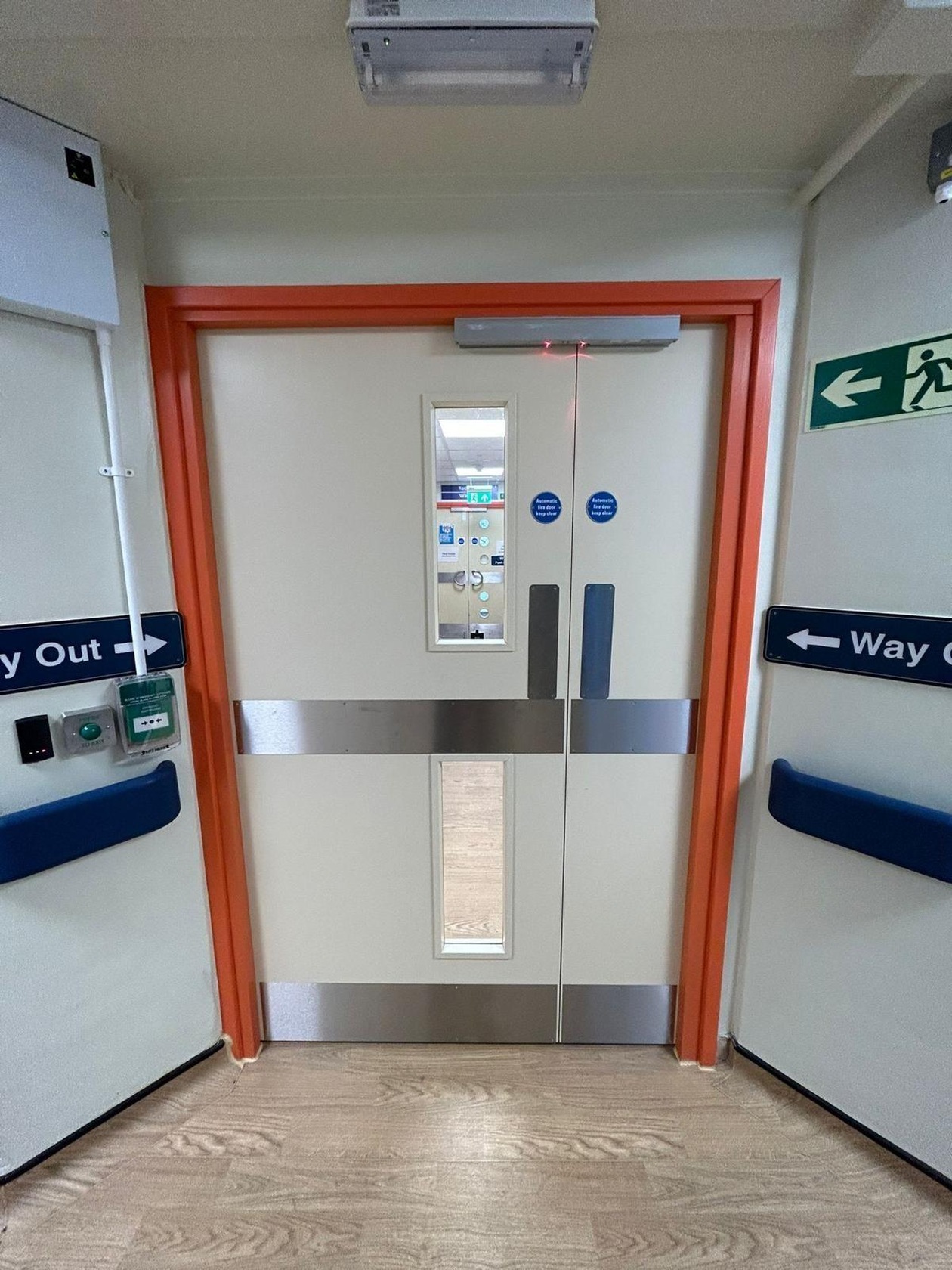

We supplied steel fire doors, wooden fire doors, and steel-wood composite fire doors for this project, manufactured to UL 10C fire standard with 45-minute, 60-minute, and 90-minute fire ratings. We produced these doors for fire compartments, equipment rooms, and other healthcare functional areas requiring fire-rated separation.
Radiation Protection Door System
We manufactured radiation protection doors and radiation acoustic doors for the project's X-ray rooms, radiology department, and medical imaging areas. Each door frame was built from 1.2mm galvanized steel sheet, with a lead plate shielding structure for radiation protection and a fire acoustic core. We produced these doors to UL 10C, 45-minute fire rating, with radiation shielding performance built into the door construction.
| Spec | Detail |
| Sound Insulation | 47dB |
| Door Frame | 1.2mm galvanized steel sheet |
| Door Leaf | 1mm HPL panel + 3mm plywood + 3mm MDF + acoustic door core + PVC edge sealing |
| Glass | 40mm composite fire acoustic glass |
| Visible Size | 250×750mm |
| Door Thickness | 70mm |
| Spec | Detail |
| Standard | UL 10C |
| Sound Insulation | 40dB |
| Door Frame | 1.2mm galvanized steel sheet, welded structure, 30×30mm edge finishing strip, mineral wool filling |
| Door Leaf | 0.8mm galvanized steel sheet + acoustic door core |
| Glass | 32mm composite fire acoustic glass |
| Visible Size | 250×750mm |
| Door Thickness | 55mm |
| Wall Thickness | 130mm |
| Surface Finish | Powder Coating |
We supplied wooden fire doors, wooden glass fire doors, and wooden interior doors for this project. These products combine fire safety performance with an architectural finish appropriate for hospital public and interior areas, where appearance matters alongside compliance.

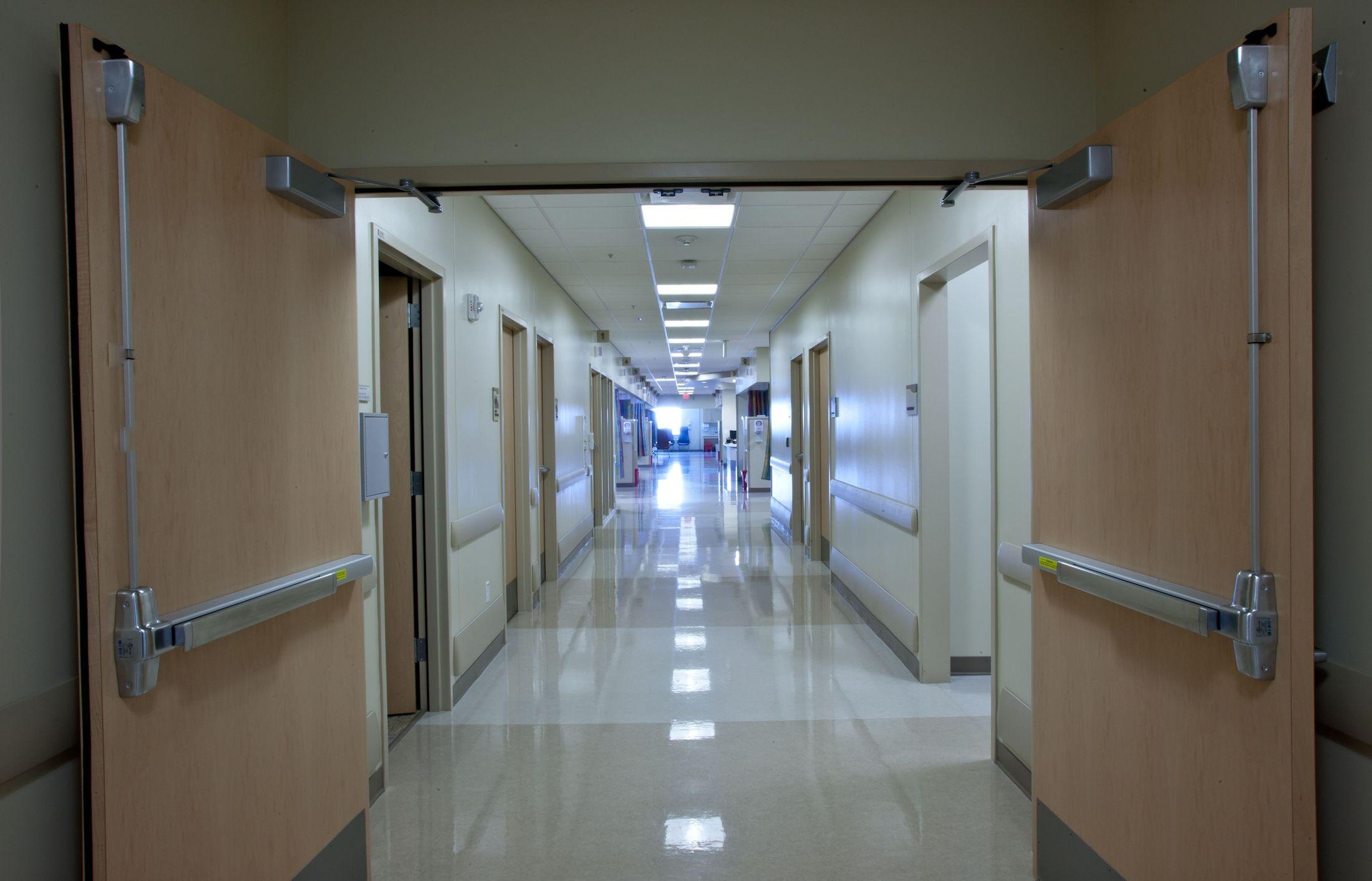

We supplied floor spring doors for the project's main entrance and other high-traffic public areas, where durability under continuous daily use is a key requirement.
Featured Product: UL Steel Acoustic Fire Door With Vision Panel
We developed this product for hospital areas that need fire protection, acoustic control, and visibility at the same time — such as consultation rooms, functional treatment rooms, and monitored patient areas — giving staff a clear sightline through the door without compromising fire or acoustic performance.
| Component | Specification |
| Door Frame | 1.2mm galvanized steel sheet, welded structure, 30×30mm edge strip, mineral wool filling |
| Door Leaf | 0.8mm galvanized steel sheet + acoustic core, 40dB sound insulation, UL 10C |
| Glass Vision Panel | 32mm composite fire acoustic glass, visible size 250×750mm |
| Door Thickness | 55mm |
| Wall Thickness | 130mm |
| Surface Finish | Powder Coating |
FAQ
What door types does a hospital project need, and how do they differ by area?
Hospitals typically need several door categories in one building: UL fire rated doors for fire compartments, radiation protection doors for X-ray/imaging rooms, acoustic doors for consultation rooms, and acoustic fire doors for ICU/functional rooms. We manage these as one coordinated supply scope.
What is a radiation protection door?
It integrates a lead plate shielding layer with a fire acoustic core and galvanized steel frame in one assembly, typically achieving UL 10C, 45-90minute fire rating plus radiation shielding — for X-ray and radiology use.
Can acoustic doors also meet fire ratings for ICUs?
Yes — our acoustic fire doors combine sound insulation (e.g. 40dB) with UL 10C fire rating in one door assembly, meeting both privacy and compartmentation needs without two separate products.
How does your engineering team handle a complex hospital Door Schedule?
We review the BOQ, Door Schedule, and drawings, confirm CAD shop drawings per door type, match customer-supplied or self-supplied hardware, and engineer custom dimensions and special structures like radiation shielding.
Does Qi'an Door have overseas hospital project experience, such as in Nigeria?
Yes — this case study reflects our 2024 Nigeria hospital project, supplying UL fire doors, radiation protection doors, acoustic doors, and wooden doors as one complete healthcare door system.
