Top Benefits Of Wooden Fire Rated Doors

High-end architectural projects frequently face a strict dichotomy: meeting rigorous life-safety fire codes versus maintaining a premium, cohesive interior design aesthetic. Traditional steel fire doors, while highly durable, often compromise the visual integrity of luxury residential, hospitality, and corporate environments. Facility managers and architects need solutions that do not force a choice between compliance and design. Specifying engineered wooden fire rated doors bridges this gap. This guide evaluates the structural benefits, acoustic advantages, and technical selection criteria required to integrate timber-based fire doors into compliant, high-performance building envelopes. We will examine the exact specifications, core materials, and installation tolerances that dictate performance in the field, ensuring your next project meets both regulatory demands and architectural vision.

• Aesthetic Compliance: Modern manufacturing allows wooden fire doors to achieve up to 120-minute fire ratings (FD120 / UL 120) without sacrificing architectural finishes, grain matching, or veneer continuity.

• Dual-Performance Metrics: The integration of specialized acoustic cores makes the modern fireproof and soundproof door a standard requirement for hospitality and healthcare, addressing both life safety and acoustic privacy (STC ratings up to 50+).

• Installation Sensitivity: The primary risk in specifying fireproof wooden doors lies in installation; improper gap tolerances or uncertified hardware will instantly void the fire certification and compromise building safety.

• Lifecycle Value: The long-term operational value is driven by increased property valuation, occupant comfort, energy efficiency, and design continuity across the facility.

The Role of Wooden Fire Rated Doors in Modern Architecture

Passive fire protection systems form the baseline of modern building codes like NFPA 80 and BS 8214. These regulations demand compartmentalization to prevent the spread of fire and smoke through a structure. Historically, architects faced friction when balancing the desire for natural materials against the strict requirements of fire marshals. Standard timber burns predictably, making it a liability in egress routes. However, the landscape of passive fire protection has shifted dramatically with the introduction of engineered cores and advanced sealants.

Testing standards rigorously evaluate door performance under extreme conditions. Methodologies include positive pressure testing (UL 10C), neutral pressure testing (UL 10B), and international standards like EN 1634-1 or BS 476-22. These tests ensure the door assembly can withstand intense heat and pressure for a specified duration without structural failure or excessive temperature rise on the unexposed face. Positive pressure testing, in particular, simulates the real-world behavior of a fire, forcing hot gases outward and testing the limits of perimeter seals.

Advancements in engineering have transformed standard wooden doors into highly engineered life-safety devices. The integration of intumescent materials, non-combustible mineral cores, and pressure-treated fire-retardant timber allows these doors to meet stringent safety codes while maintaining the desired aesthetic. Intumescent technology is the backbone of this shift. These materials remain dormant under normal conditions but expand rapidly when exposed to high temperatures, sealing the gaps between the door leaf and the frame to block smoke and flames.

The architectural community now relies on these engineered solutions to maintain design continuity. Instead of breaking up a wood-paneled corridor with a hollow metal door, designers can specify a fire-rated assembly that perfectly matches the surrounding millwork. This capability is essential in environments where occupant perception and premium finishes are paramount, such as luxury hotels, high-end residential towers, and corporate headquarters.

Core Benefits of Specifying Fireproof Wooden Doors

Fire resistance ratings evaluate performance against time-temperature curves. Ratings typically range from 20 to 120 minutes (e.g., FD30 to FD120). Building class and occupancy types mandate specific ratings. For example, a 20-minute door might suit a residential corridor, while a 90-minute door is often required for stairwell enclosures. The core material dictates this rating, shifting from solid particleboard for lower ratings to complex mineral composites for higher durations.

Heavy-core timber doors offer excellent dual-functionality. The mass of specialized multi-layer acoustic cores, combined with drop-down perimeter seals, significantly reduces sound transmission. A modern fireproof and soundproof door can achieve Sound Transmission Class (STC) ratings from 35 to over 50. These are essential for hotel corridors, hospital recovery rooms, and executive boardrooms where privacy and noise control are just as important as fire safety. The density required to stop a fire inherently acts as an excellent sound barrier.

Solid timber and composite mineral cores provide superior thermal resistance compared to uninsulated metal doors. This reduces thermal bridging and contributes to overall HVAC efficiency. Better thermal performance aids projects in securing LEED, BREEAM, or WELL certification credits. By minimizing heat transfer between climate-controlled zones and unconditioned spaces, these doors help stabilize interior temperatures and reduce the load on mechanical systems.

Aesthetic evaluation dimensions for wooden fire rated doors are vast. Options include FSC-certified wood species, various veneer matching patterns (book, slip, or pleasant-match), and factory-applied coatings. Fire-rated glazing, using ceramic fire-resistant glass, allows light transmission while maintaining the fire barrier. Vision panels must be factory-installed to maintain certification, utilizing specialized glazing beads and intumescent liners to secure the glass during a fire event.

Technical options for edge banding impact both durability and visual appeal. Concealed edge banding provides a seamless look, hiding the core material entirely beneath a continuous veneer. Exposed edge banding, often utilizing hardwood lippings, offers robust protection in high-traffic zones. Proper detailing ensures the door withstands daily wear, such as impacts from carts or luggage, while keeping its premium appearance intact over years of heavy use.

Wooden Doors vs. Steel Fire Doors: A Conceptual Trade-Off Analysis

Steel doors often present an institutional, cold feel. In contrast, wooden doors offer natural warmth, psychological comfort, and a premium perception. This aesthetic alignment is necessary in luxury residential and high-end commercial environments where the visual language of the space dictates the material choices. A hollow metal door in a mahogany-paneled executive suite disrupts the design intent, whereas a matching wood veneer door integrates flawlessly.

Wood is more vulnerable to impact damage, such as scratching or gouging, compared to steel, which tends to dent. In commercial settings, protective high-impact plastic laminates, concealed edge guards, and kick plates mitigate wear on timber doors. Acrovyn or similar rigid vinyl sheets can be factory-applied to the lower half of the door to protect against heavy cart traffic in hospitals or back-of-house hotel corridors, combining the structural integrity of the wood core with the durability of a synthetic shield.

Heavy-duty mineral-core wood doors have different weight profiles than hollow metal doors. A 90-minute mineral core door is exceptionally heavy. Increased weight impacts structural framing, wall reinforcement, and hinge wear over time. Proper specification of hardware is necessary to support the load. Heavy-weight ball-bearing hinges or continuous hinges are often required to prevent the door from sagging and binding against the frame, which would immediately compromise the fire seal and void compliance.

The operational lifecycle of these doors depends heavily on the environment. Steel doors may rust in high-humidity coastal environments if the galvanization is compromised, whereas wood doors require stable interior humidity to prevent warping. Facility managers must weigh the environmental conditions of the installation site against the material properties. For interior conditioned spaces, wood offers a superior tactile experience and acoustic dampening, making it the preferred choice for occupant-facing applications.

Technical Evaluation Criteria for Wooden Fire Rated Doors

The core dictates the maximum achievable fire rating and door weight. Understanding the specific properties of each core type is essential for proper specification and long-term performance in the field.

Solid Timber and Stave Cores are excellent for standard 20-minute doors. They offer high screw-holding capacity, making hardware installation straightforward and durable. These cores are often used in residential applications where the fire risk requires basic compartmentalization without the extreme weight of higher-rated assemblies.

Particleboard Cores and Structural Composite Lumber (SCL) are suitable for 20 to 45-minute ratings. SCL provides exceptional stability and resistance to warping, making it a reliable choice for oversized doors or environments with slight temperature fluctuations. It also holds screws well, reducing the need for specialized through-bolting on heavy closers or panic hardware.

Mineral Cores are non-combustible materials necessary for 60, 90, and 120-minute ratings. These cores are typically composed of calcium silicate or gypsum-based materials. While they provide exceptional fire resistance, they are heavy and brittle. They lack the screw-holding capacity of wood, requiring factory-installed internal blocking at all hardware attachment points. If a closer or hinge is attached directly to a mineral core without blocking, it will fail under normal operational stress.

Choosing between timber frames and engineered steel frames impacts the visual transition and the overall assembly fire rating. Both the door leaf and the frame must be certified as a compatible assembly. A 90-minute wood door hung in a non-rated frame provides zero fire protection. Steel frames are often used for higher ratings due to their structural stability under extreme heat, but engineered hardwood frames with intumescent backing can achieve up to 60-minute ratings, allowing for a complete timber aesthetic.

Intumescent strips expand up to 25 times their size under heat to seal gaps and prevent hot gases from passing. Cold smoke seals are also critical, as smoke inhalation is the primary cause of fire-related fatalities. The door leaf is only one part of a complete, certified fire door assembly. These seals must be routed into the door edge or the frame rabbet with absolute precision. If the groove is too deep, the intumescent material will not bridge the gap during a fire; if too shallow, it will bind during normal operation.

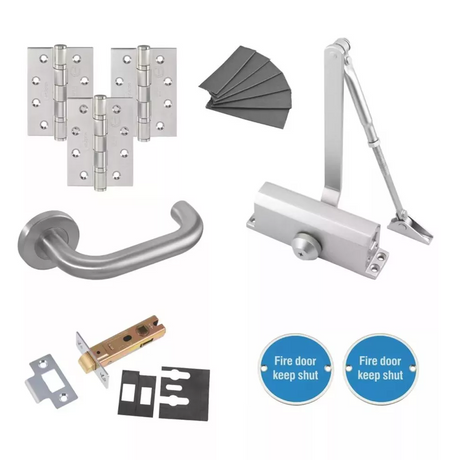

All hinges, door closers, panic hardware, and locks must be independently tested and certified for use with the specific wood door leaf and frame assembly. Using non-combustible gaskets behind hinges and lockcases is a strict requirement for higher-rated doors. These intumescent hardware pads prevent heat from transferring through the metal hardware and igniting the wood core from the inside out.

Implementation Risks and Mitigation Strategies

Incorrect gap sizes between the door leaf and frame are the most common failure point during fire door inspections. The physics of intumescent seals require specific tolerances to function correctly. Improper installation legally voids the fire certificate and leaves the building vulnerable.

1. Verify frame plumb and square before hanging the door. A twisted frame will cause uneven gaps that cannot be corrected by adjusting the hinges.

2. Measure perimeter gaps meticulously. Gaps typically must be 3mm to 4mm on the sides and top.

3. Check the under-door clearance. Depending on the standard and floor covering, this is usually restricted to a maximum of 10mm to 19mm.

4. Ensure all hardware is installed using the manufacturer-supplied fasteners. Substituting standard wood screws for specialized fire-rated fasteners compromises the assembly.

5. Confirm that no on-site modifications have been made to the door leaf, such as routing for a new lockset, without explicit manufacturer approval and recertification.

Site humidity risks timber warping, twisting, or swelling. Wood is a hygroscopic material that constantly exchanges moisture with its environment. Mitigation steps include HVAC commissioning prior to installation, proper horizontal on-site storage, and sealing all four edges of the door leaf. Doors should never be stored leaning against a wall, as this induces a permanent bow. They must be stacked flat on level supports in a climate-controlled room.

Third-party certification is necessary to prove compliance. Look for UL/ULC labels, Intertek Warnock Hersey marks, or BM TRADA Q-Mark plugs. Verify the physical labels on the door spine and trace the chain of custody from manufacturer to installation. These labels must never be painted over or removed. If a label is missing or illegible, the authority having jurisdiction (AHJ) will treat the door as non-rated, requiring a costly field recertification or complete replacement.

Regional regulatory requirements, such as NFPA 80, mandate annual inspections. Facility managers must verify door operation, seal integrity, and hardware functionality over the building's lifecycle. A door that does not self-close and positively latch is not a fire door; it is just a heavy piece of wood. Regular maintenance must include checking closer tension, lubricating hinges, and inspecting perimeter seals for damage or missing sections.

Conclusion

Wooden fire rated doors provide the optimal choice when architectural integrity, tactile warmth, and acoustic performance are as critical as strict fire code compliance. The engineering behind these assemblies ensures that life safety does not require a compromise in design. To successfully implement these systems in your next project, follow these actionable steps:

1. Identify the exact fire rating and STC acoustic target dictated by local building codes for each specific opening.

2. Select core materials, frames, and veneers that align with the project's environmental conditions and interior design language.

3. Consult with a certified architectural hardware consultant (AHC) to draft a precise door schedule that guarantees hardware compatibility.

4. Request physical samples, veneer flitches, and third-party test certificates from shortlisted manufacturers before finalizing the specification.

5. Mandate a pre-installation meeting with the general contractor to review gap tolerances, storage requirements, and hardware mounting procedures.

FAQ

Q: Are wooden doors effective in a fire?

A: Yes, engineered wooden fire rated doors are rigorously tested to withstand fire for up to 120 minutes. They rely on specialized non-combustible mineral cores and intumescent seals rather than standard timber to block flames and heat.

Q: What makes a wooden door fire-rated?

A: A fire-rated wooden door consists of a fire-resistant core, a certified frame, intumescent perimeter seals, and fire-rated hardware. Together, these components make up a complete, certified door assembly that has passed standardized burn tests.

Q: Can a fireproof and soundproof door be made of wood?

A: Yes. The high density of modern mineral cores and specialized multi-layer acoustic cores inherently provide excellent acoustic dampening, often achieving STC ratings up to 50+ while maintaining full fire compliance.

Q: How long do fireproof wooden doors last?

A: Lifecycle expectations depend on traffic volume, seal maintenance, and environmental stability. The fire rating itself does not expire if undamaged, but seals, closers, and hinges require regular maintenance and occasional replacement.

Q: Can I trim or cut a wooden fire door to fit a frame?

A: Trimming beyond manufacturer allowances—typically limited to 3mm to 6mm off the bottom only—will void the fire certification. On-site alterations to the sides or top are strictly prohibited.

Q: Can a wooden fire door have glass panels installed?

A: Vision panels can be factory-installed using certified fire-rated glazing like ceramic glass and approved steel vision frames. Cutting openings on-site is strictly prohibited and instantly voids the certification.

Q: How often do wooden fire rated doors need to be inspected?

A: Standards like NFPA 80 mandate annual inspections by a qualified professional to ensure the door leaf, frame, seals, and hardware remain fully operational, self-closing, and compliant with original testing parameters.
