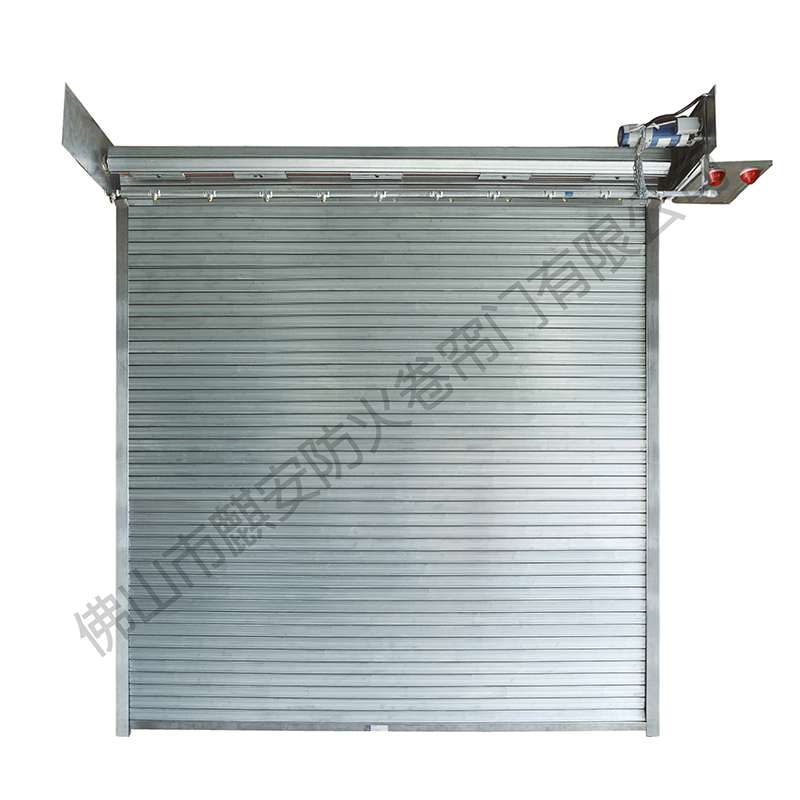

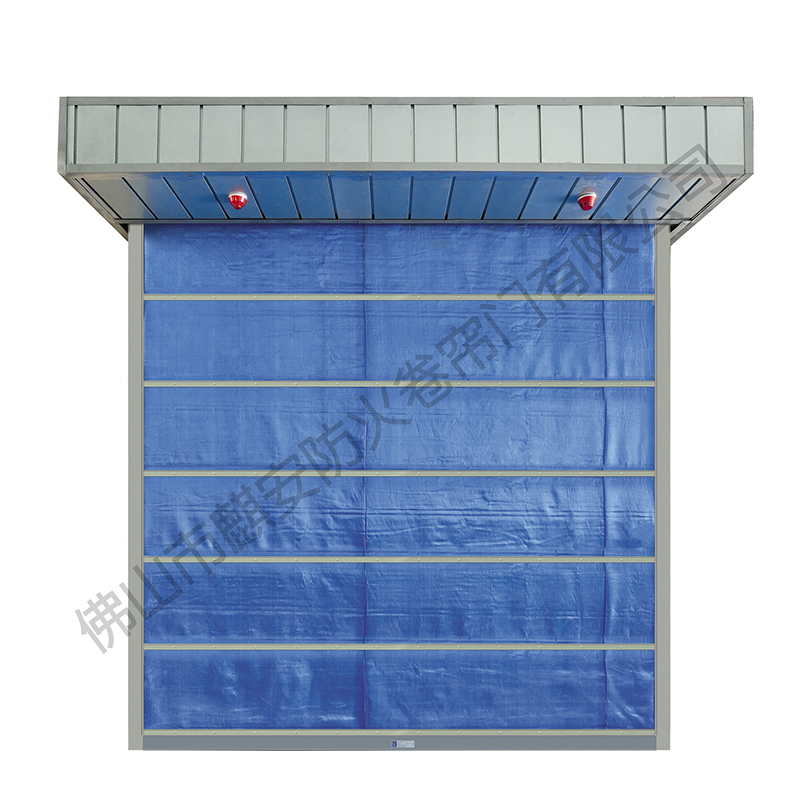

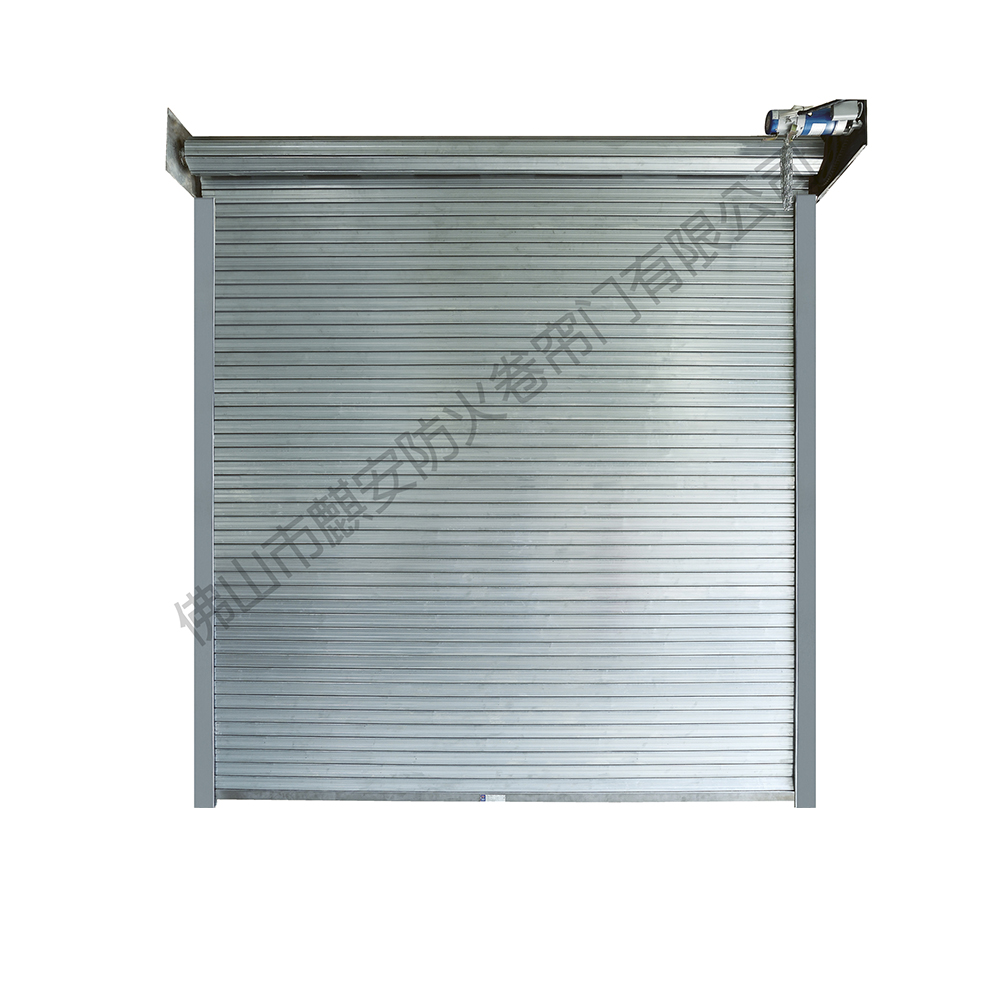

Fire-resistant Roller Shutter Door

Product Overview

The Fire-resistant Roller Shutter Door is a high-performance fire protection system designed to safeguard lives and property during fire emergencies. With a sleek and minimalist overall design, it comes in two classic colors—silver gray and white—that seamlessly blend with various architectural styles, from modern commercial buildings to industrial facilities. Engineered as a flat roller shutter, it offers exceptional space-saving benefits when retracted, while expanding to form a continuous, regular barrier that effectively divides fire zones. Its core function of preventing fire and smoke spread makes it an indispensable safety component for any structure requiring reliable fire separation.

Structure & Materials

Core Structural Components

Curtain Plate: The primary barrier of the shutter door, constructed by splicing high-quality galvanized steel plates or stainless steel plates for superior durability and fire resistance. The interlocking design ensures no gaps for fire or smoke to penetrate.

Guide Rail: Installed on both sides of the door opening, the guide rail provides smooth, stable guidance for the vertical movement of the curtain plate, ensuring seamless operation even during emergency activation.

Reel: Positioned above the door opening, the heavy-duty reel is engineered to retract and store the curtain plate efficiently, minimizing space occupation when not in use.

Driving Device: A robust power system that enables automatic, manual, and emergency operation, ensuring the shutter door functions reliably in all scenarios.

Material Advantages

All structural materials are selected for fire resistance, corrosion resistance, and impact resistance. Galvanized steel plates and stainless steel plates prevent rust and deformation, even in harsh industrial environments, extending the product’s service life.

Technical Specifications

Key Performance Features

Fire Protection & Heat Insulation

Fire Prevention: The fire-resistant curtain plate material effectively blocks the spread of fire and smoke, creating a safe evacuation channel and buying critical time for fire rescue. It meets strict fire safety standards to ensure reliable performance in extreme conditions.

Heat Insulation: Selected models feature internal heat insulation material filling, reducing heat transfer during fires and protecting adjacent equipment, materials, and structural components from thermal damage.

Intelligent Control & Safety

Automatic Control: Seamlessly links with automatic fire alarm systems—detects fire signals and descends to the predetermined position automatically, eliminating the need for manual intervention.

Dual Safety Devices: Equipped with a reliable anti-falling device to lock the curtain plate instantly if the shutter malfunctions or is impacted, preventing sudden drops. The upper and lower limit devices ensure operation within a safe range, avoiding damage from over-extension or over-retraction.

Applicable Scenarios

Commercial Buildings

Ideal for shopping malls, supermarkets, and shopping centers, the shutter door divides large spaces into independent fire zones, preventing fire from spreading between sales areas, storage rooms, and public corridors.

Industrial Workshops & Warehouses

In manufacturing facilities, logistics warehouses, and industrial parks, it serves as a fire separation barrier, protecting production equipment, raw materials, and finished goods from fire damage and minimizing business losses.

Underground Garages

Installed at garage entrances, exits, and internal fire zones, it stops fire and smoke from spreading to residential areas or other building floors connected to the garage, enhancing overall building safety.

Advantages & Certifications

Core Advantages

Space-Saving Design: Flat roller structure occupies minimal space when retracted, making it suitable for buildings with limited overhead space.

All-Scenario Adaptability: Compatible with commercial, industrial, and underground spaces, with customizable sizes to fit different door openings.

Low Maintenance Cost: Durable materials and simple structure reduce long-term maintenance needs, ensuring cost-effectiveness.

Certifications

Compliant with ISO 9001 quality management system, CE fire safety certification, and local fire protection standards, ensuring product reliability and market access.

Installation & Maintenance

Professional Installation

Installed by a certified technical team to ensure accurate alignment of guide rails, proper fixation of the reel and driving device, and seamless linkage with fire alarm systems.

Post-installation testing includes automatic activation, manual operation, and safety device functionality to confirm normal use.

Routine Maintenance

Regular Inspection (quarterly): Check curtain plate integrity, guide rail smoothness, and driving device operation; address loose connections, deformation, or wear promptly.

Cleaning (monthly): Wipe the curtain plate and guide rail surface with a dry cloth to remove dust and debris; avoid using corrosive cleaners.

Function Testing (semi-annually): Conduct full-cycle tests of automatic and manual control functions to ensure emergency responsiveness.
